Detalhes do produto
Lugar de origem: China
Marca: LEADYO
Certificação: UN38.3, CE,MSDS,UKCA
Número do modelo: LP24V100
Termos do pagamento & do transporte
Quantidade de ordem mínima: 1pcs
Preço: Negotiable
Detalhes da embalagem: Exportação UN3480 padrão
Tempo de entrega: 15-45 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram, em linha
Habilidade da fonte: 60Mwh
Tensão nominal: |
25.6V |
Capacidade nominal: |
100Ah |
Peso: |
21kg |
Dimensão: |
550*305*260mm |
Corrente de carga máxima: |
100A |
Corrente de descarga máxima: |
100A |
Caso de CaseABS: |
Caixa do metal |
terminal: |
M8 |
Aplicação: |
Máquina do assoalho e a outra aplicação |
Tensão nominal: |
25.6V |
Capacidade nominal: |
100Ah |
Peso: |
21kg |
Dimensão: |
550*305*260mm |
Corrente de carga máxima: |
100A |
Corrente de descarga máxima: |
100A |
Caso de CaseABS: |
Caixa do metal |
terminal: |
M8 |
Aplicação: |
Máquina do assoalho e a outra aplicação |

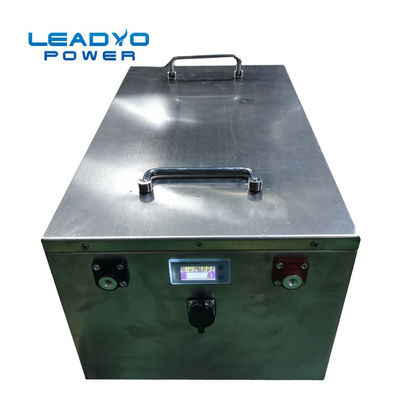

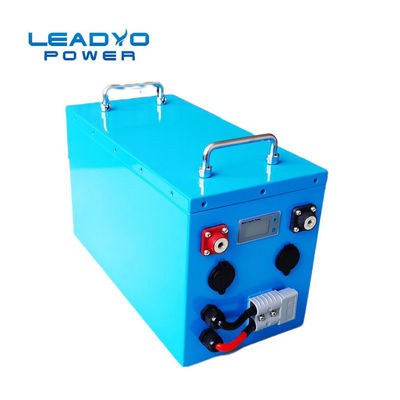

24V 25.6V 100Ah rechargeable LiFePO4 Packs for Floor Cleaning Machine
Features Of 24V 100Ah
Long life
LiFePO4 batteries solution with extreme long usage life is now the best battery solution for floor cleaning machine, it helps to minimize the floor Cleaning machine battery replacement costs of ownership.
Lighter weight
The LiFePO4 battery weighs less than half of comparable lead acid batteries, providing customers with a lighter-weight solution to optimize your product design and avoid unnecessary oversizing, which helps minimize cost and system complexity.
High power
LiFePO4 deliver stronger power of lead acid, including at high discharge rates and harsh temperature condition, while maintaining high energy capacity to maximize product performance.
Super safety
LiFePO4 technology offers excellent abuse tolerance, establishing a foundation of safety at the cell level. In addition, multiple system-level of protection are employed to deliver greater durability and reliability compared to lead acid and competing lithium ion NMC or NCA battery technologies.
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 100Ah | Weight | 21kg | |
| Nominal Energy | 2560Wh | Case Dimension(L*W*H) | 550*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal | |
| Capacity | @16A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 100A | Max Charge Current | 100A | |
| Peak Current | 300A | Recommended Charge Current | 20A - 50A | |
| Discharge pulse current | 500±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
