Detalhes do produto
Lugar de origem: China
Marca: LEADYO
Certificação: UN38.3, CE,MSDS,UKCA
Número do modelo: LP12V010
Termos do pagamento & do transporte
Quantidade de ordem mínima: 1pcs
Preço: Negotiable
Detalhes da embalagem: Exportação UN3480 padrão
Tempo de entrega: 15-45 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram, em linha
Habilidade da fonte: 60Mwh
Tensão nominal: |
12.8V/12V |
Capacidade nominal: |
10Ah 12Ah |
G.Weight: |
1.5kg |
Tamanho: |
151*99*94mm |
Trabalho atual: |
10A Contonuous |
Caso: |
Capa de plástico do ABS |
BMS: |
com BMS |
Tensão nominal: |
12.8V/12V |
Capacidade nominal: |
10Ah 12Ah |
G.Weight: |
1.5kg |
Tamanho: |
151*99*94mm |
Trabalho atual: |
10A Contonuous |
Caso: |
Capa de plástico do ABS |
BMS: |
com BMS |

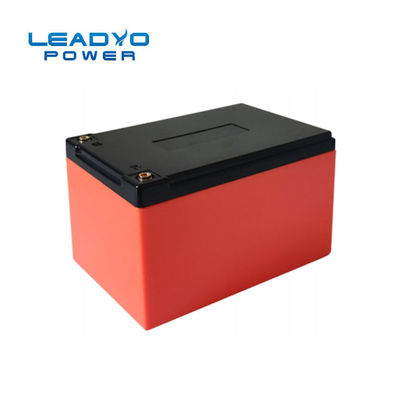

12V Lithium Iron Phosphate 12.8V 10Ah 12Ah LiFePo4 battery for UPS
This 12 volt lithium battery packs with Lithium Iron Phosphate (LiFePO4) technology this battery has twice the power, half the weight, and lasts 4 times longer than a sealed lead acid battery – providing exceptional lifetime value. The battery for fishing electronics, outdoor use, and SLA replacement. Replaces 12.8V battery and many more. LiFePO4 charger recommended.
Application:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 12.8V | Terminal Type | M8 | |
| Nominal Capacity | 10Ah | Weight | 1.5kg | |
| Nominal Energy | 128Wh | Case Dimension(L*W*H) | 151*99*94mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | ABS | |
| Capacity | @2A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 4PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 10A | Max Charge Current | 10A | |
| Peak Current | 20A | Recommended Charge Current | 2A - 5A | |
| Discharge pulse current | 30±5A (31±10ms) | End of Charge voltage | 14.4V±0.2V | |
| BMS Low Voltge Cut-off | 10V | End of discharge voltage | 10V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q1: What is the biggest difference between your battery and other suppliers?
A1: Over 10 Years production experience with this model battery; Battery made of UL UN38.3 MSDS certificated battery cell, PCB structure Battery module, Build in Smart BMS for protection;
Q2: What's the Lead time of the battery?
A2: 3-10 work days; Specific Lead time depend on the quantity and requirement
Q3. Is this product safe?
A3: Passed the overcharge, over discharge, over temperature, short circuit, acupuncture and other safety tests, no fire, no
explosion at any circumstance;
