Detalhes do produto
Lugar de origem: China
Marca: LEADYO
Certificação: UN38.3, CE,MSDS,UKCA
Número do modelo: LP24V300
Termos do pagamento & do transporte
Quantidade de ordem mínima: 1pcs
Preço: Negotiable
Detalhes da embalagem: Exportação UN3480 padrão
Tempo de entrega: 15-45 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram, em linha
Habilidade da fonte: 60Mwh
Tensão nominal: |
24V |
Capacidade nominal: |
300Ah |
Peso: |
65kg |
Dimensão: |
L705*W305*H260mm |
Corrente contínua: |
200A |
corrente máxima: |
500A |
Caso: |
Caixa do metal |
Tensão nominal: |
24V |
Capacidade nominal: |
300Ah |
Peso: |
65kg |
Dimensão: |
L705*W305*H260mm |
Corrente contínua: |
200A |
corrente máxima: |
500A |
Caso: |
Caixa do metal |

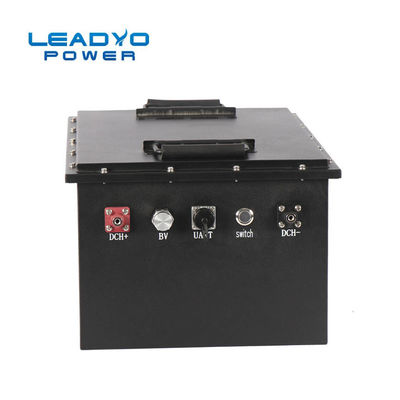

24V 300Ah LiFePO4 battery built in LCD monitoring systems for solar application
Lithium Iron Phosphate Battery 24V 300Ah
Nominal Voltage 25.6V
Nominal Capacity 300 Ah
Capacity @ 60A 300 min
Energy 7680 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
Features:
Longer battery life – 5000times life cycle @60%DOD, 5 times more than lead acid batteries
Free of charge memory
Steady discharge and charge performance.
Outstanding thermal stability
Wide temperature performance
Short circuit protection
Over charge and over discharge protection
Over current protection
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 25.6V | Terminal Type | M8 | |
| Nominal Capacity | 300Ah | Weight | 65kg | |
| Nominal Energy | 7680Wh | Case Dimension(L*W*H) | 705*305*260mm | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case | |
| Capacity | @40A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | 2PCS | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 200A | Max Charge Current | 200A | |
| Peak Current | 500A | Recommended Charge Current | 60A - 150A | |
| Discharge pulse current | 700±50A (31±10ms) | End of Charge voltage | 28.8V±0.2V | |
| BMS Low Voltge Cut-off | 20V (2.0V±0.05v) pc) | Balancing current | Auto start | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 & BIS for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
